ECH75-20-DC100% Solenoids
Solenoid for simple operation
Solenoid for simple operation

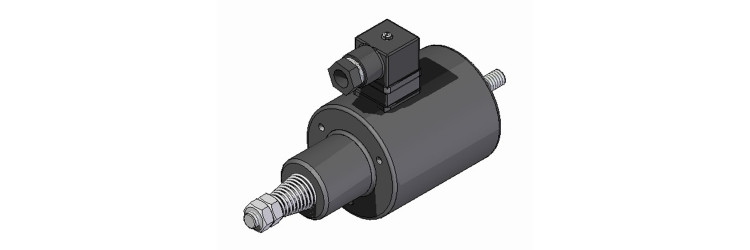

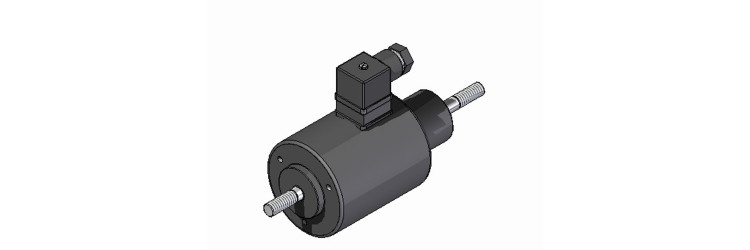

ECH75-20-DC100% : with its machined cylindrical design, this robust single-action electromagnet delivers high forces. In the vertical position, take into account the weight of the core.
Solenoids
- Product range
- Solenoid for simple operation

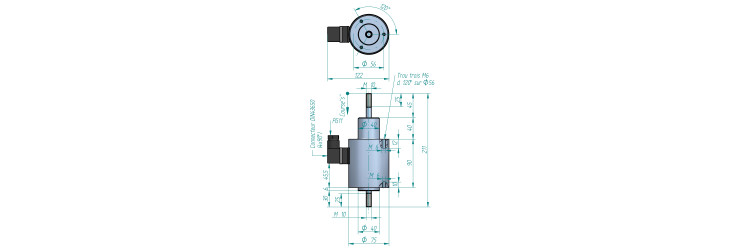

- Body length
- 136
- Body length
- 136 mm
- Coil weight
- 375 g
- Coil weight
- 375
- Total weight
- 3000
- Total weight
- 3000 g
- Product range
- Solenoid for simple operation
- Function
- Pulling/pushing
- Spring force at the beginning of the stroke
- 7
- Spring force at the beginning of the stroke
- 7 N
- Spring force at the end of the stroke
- 37
- Spring force at the end of the stroke
- 37 N
- Diameter
- 75
- Diameter
- 75 mm
- Options
- Other voltages and duty factors on request.
- Stroke
- 20
- Stroke
- 20 mm

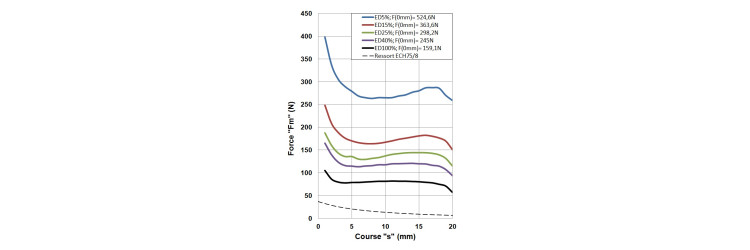

- Force at beginning of stroke
- 57
- Force at beginning of stroke
- 57 N
- Force at end of stroke
- 159
- Force at end of stroke
- 159 N
- Internal return spring
- yes
- Duration of attraction
- 410
- Duration of attraction
- 410 ms
- Recoil time
- 256
- Recoil time
- 256 ms
- Duty cycle
- 100
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 5
- Duration of the cycle for the calculation
- 5 min
- Power
- 48
- Power
- 48 W
- Connection
- IP65 connector
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP40
