ERDI15-05 Solenoids

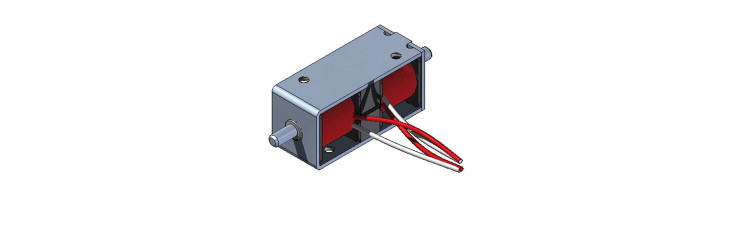

Bistable solenoid
Bistable solenoid
The solenoid 'Bistable Series' has a bistable function. The 2 extreme positions of the nucleus are stable by the action of permanent magnets.
Solenoids
- Body length
- 35 mm
- Width solenoid
- 14 mm
- Coil weight
- 5 g
- Height
- 16 mm
- Total weight
- 40 g
- Stroke
- 5 mm
- Force at beginning of stroke
- 1,5 N
- Internal return spring
- no
- Duration of attraction
- 22 ms
- Recoil time
- 22 ms
- Product range
- Bistable solenoid
- Function
- Pulling/pushing
- Options
- Other voltages and duty factors on request.
- Product range
- Bistable solenoid
- Duty cycle
- 33 %
- Duration of the cycle for the calculation
- 5 min
- Power
- 9 W
- Connection
- Free wires
- Insulation class
- E
- Standard voltages
- 6 ou 12 V
- IP protection
- IP00
