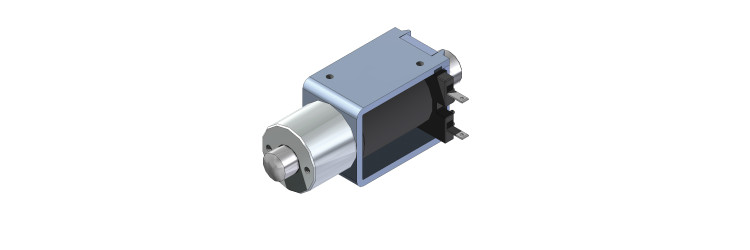

ER30-10/CCR-DC 100% Solenoids
Solenoid for simple operation
Solenoid for simple operation
ER30-10/CCR-DC 100% : this simple operating electromagnet from the ‘Lock Series’ range is designed for locking applications. It can withstand high radial forces. It is equipped with an internal spring. Some are standard pull types and others are push types.
Solenoids
- Product range
- Solenoid for simple operation
- Body length
- 59,5
- Body length
- 59,5 mm
- Width solenoid
- 29
- Width solenoid
- 29 mm
- Coil weight
- 60
- Coil weight
- 60 g
- Height
- 30
- Height
- 30 mm
- Total weight
- 220
- Total weight
- 220 g
- Stroke
- 10
- Stroke
- 10 mm
- Internal return spring
- Integrated from 0,6 to 1,6N
- Duration of attraction
- 68
- Duration of attraction
- 68 ms
- Recoil time
- 6 ms
- Recoil time
- 6
- Product range
- Solenoid for simple operation
- Function
- Pushing
- Options
Other voltages and duty factors on request DC or AC - Free wire connections.
- Other characteristics
- Maximum allowable radial force: 1000N
- Duty cycle
- 100
- Duty cycle
- 100 %
- Duration of the cycle for the calculation
- 2
- Duration of the cycle for the calculation
- 2 min
- Power
- 8
- Power
- 8 W
- Connection
- Lugs
- Insulation class
- B
- Standard voltages
- 24
- Standard voltages
- 24 V
- IP protection
- IP00
