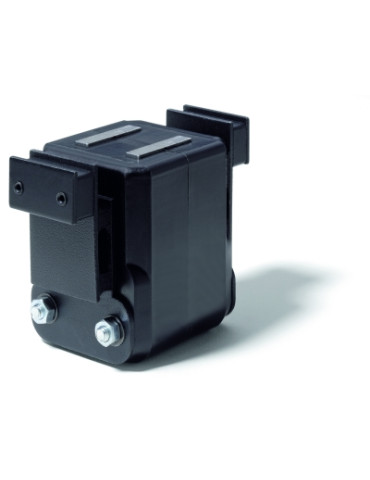

OSR 501 002 Vibrators
Magnet vibrator
Magnet vibrator
The magnetic body of the vibrator powered with AC 230V AC produces motion. The attraction is alternative between the vibrator and the magnetic steel piece vis-à-vis induces the vibration. The amplitude of the movement is adjusted by means of a VF6 voltage variator. Fixing will be done by the 2 legs integrated in the vibrator and equipped with permanent magnet of maintenance on the element to be vibrated. The adjustment of the gap will be done automatically thanks to these tabs. In this assembly, the mass of the vibrator and its inertia in motion generate the vibration.
Vibrators
- Max. air gap
- 3 mm
- Magnetic force at 1 mm air gap
- 30 N
- Magnetic force at 2 mm air gap
- 17 N
- Magnetic force at 3 mm air gap
- 13 N
- Product range
- Magnet vibrator
- Product range
- Magnet vibrator
- Frequency
- 50 Hz
- Operating protection class
- IP 60
- Power consumption
- 48 VA
- Connection
- Bi-conductor cable
- Insulation class
- E
- Standard voltage
- 230V AC/50 Hz single phase
- Total mass
- 0,76 kg
