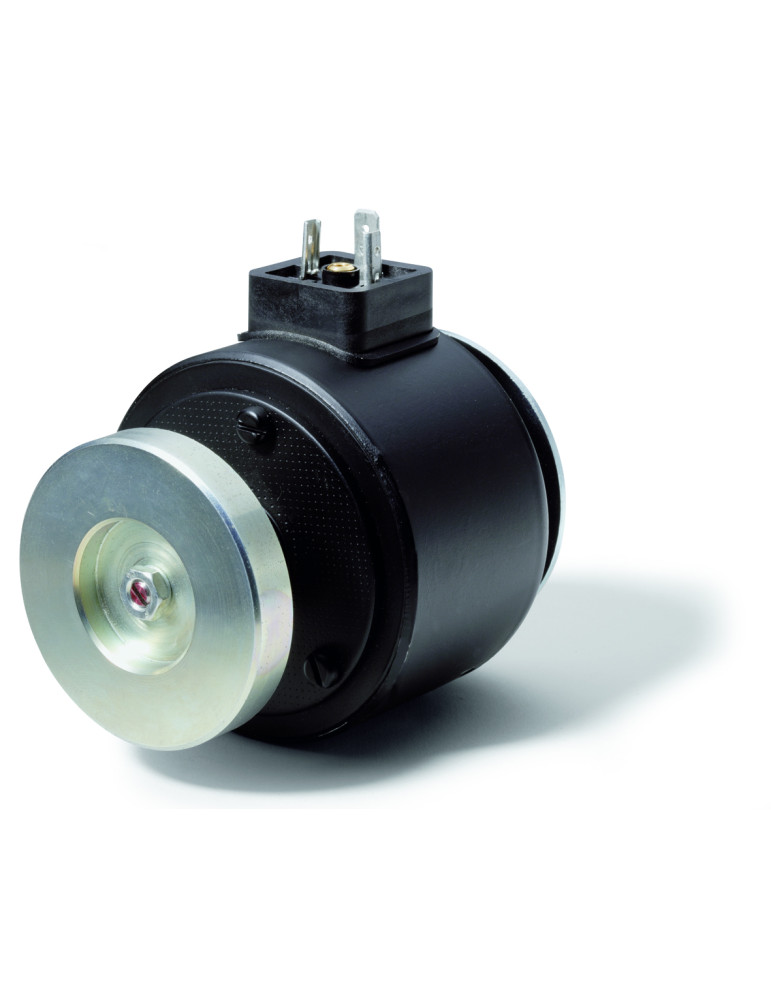

OLV 544 001

Linear vibrator without mass

The magnetic body of the vibrator powered with AC 230V AC produces a linear reciprocating motion of 50 Hz of the axis (maximum amplitude 7mm, depending on the mounting). The amplitude adjustment is carried out thanks to a VF6 voltage variator.
Vibrators
Grayed out functions require you to be logged in to your account
login to my account

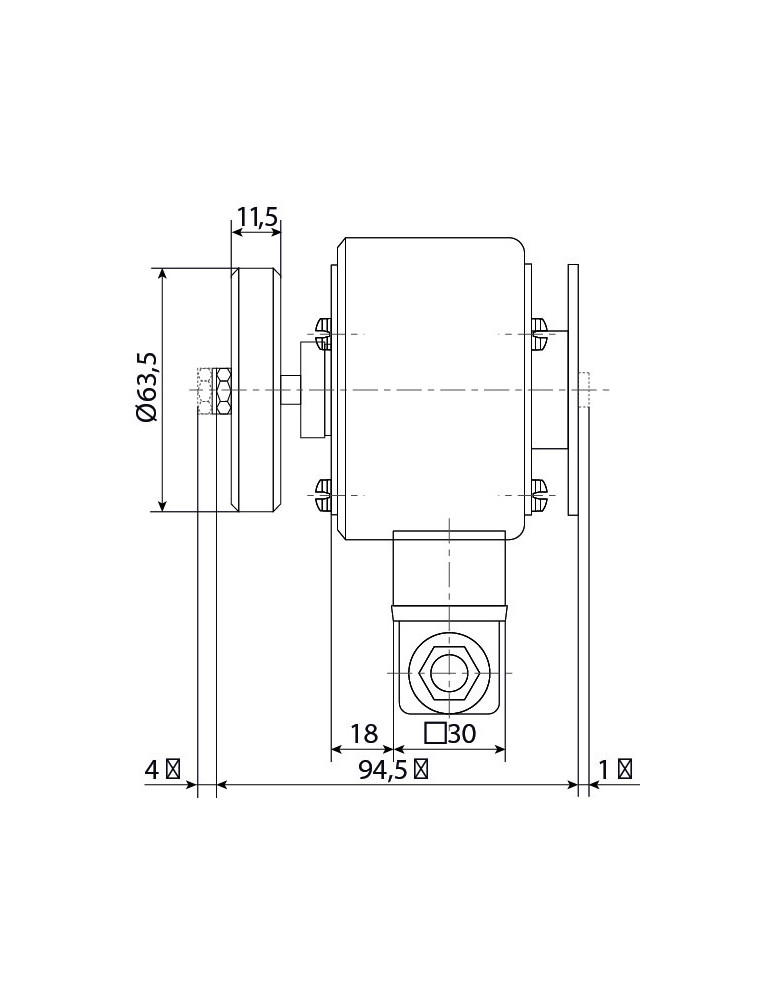

Dimensional plan
Assembly diagram
Product range
Linear vibrator without mass
Frequency
50 Hz
Operating protection class
IP 40
Power consumption
54 VA
Connection
DIN 43650 connector (IP 65)
Insulation class
B
Standard voltage
230V AC/50 Hz single phase
Average oscillation amplitude
6,5 (with complementary mass of 250g)
Max. oscillation amplitude
6 mm
Total mass
1,5 kg
